SMS-S80XX ,SGS-S80XX series - IP65 MAGNETIC STEP LIGHT SERIES

SPECIFICATIONS

Item No: SMS-S80XX **

SGS-S80XX

SKS-S80XX

Wattage:3W

IP Rate:IP65

Type of Protection:Class I

Size mm:80*80*37

Funciton:With IR&DAYLIGHT Sensor

Color: Powder coating: White/Black/Grey , Aluminum Brushed: Gold,Silver,Black,Grey

Materials: Body: die-casting aluminum , Surface cover: SMS(Iron) / SGS( Aluminum) / SKS (PMMA)

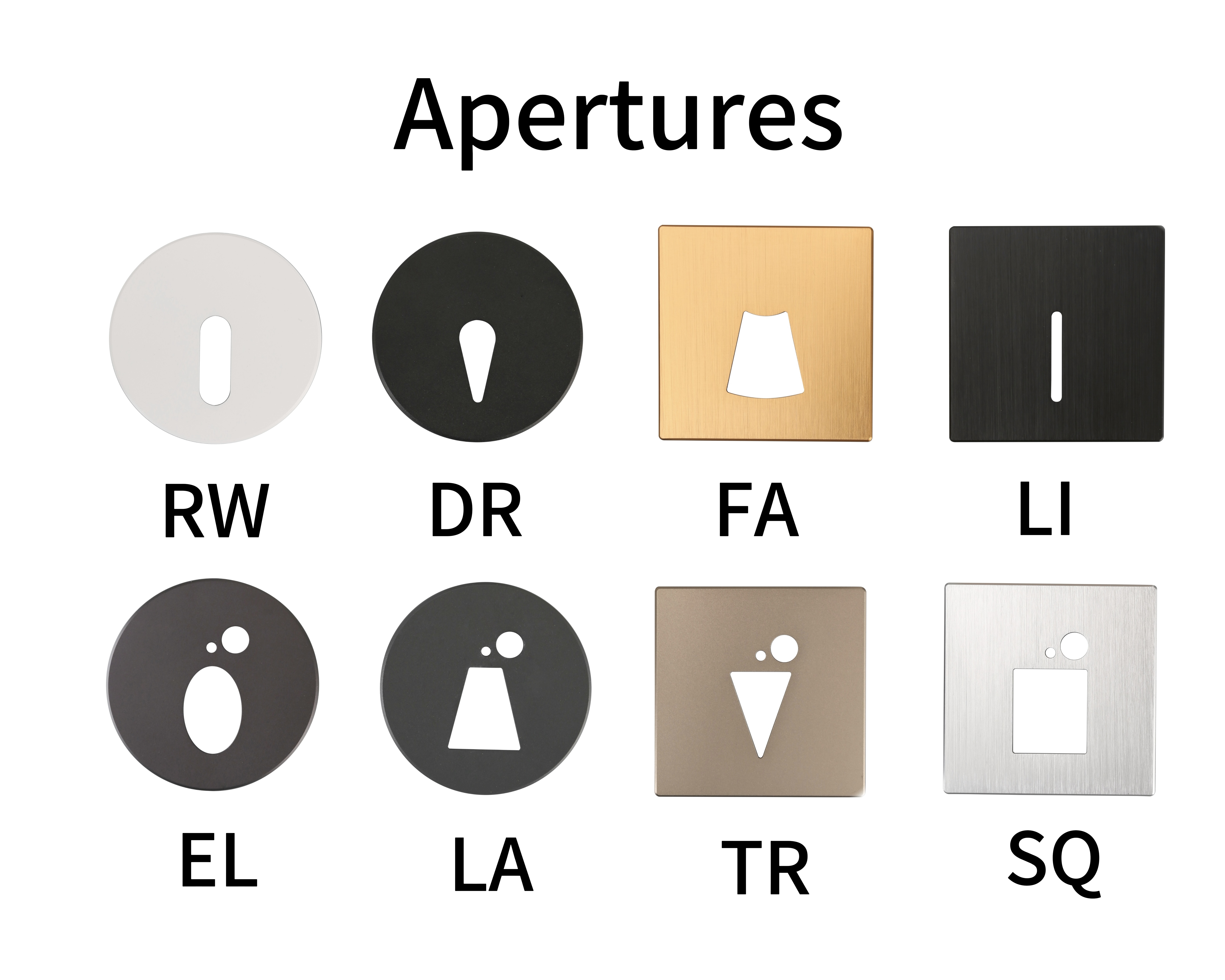

Optional aperture: LI: Line/LA: Ladder/EL: Ellipse/DR: Drop/RW: Runway/FA: Fan

Fixed with:Screw/Clips

Match wtih Cavtiy wall box: EU: Φ68 mm box(not provided)

SMS Series- Iron Magnetic Cover

SGS Series- Aluminum Magnetic Cover

SKS Series- PMMA Magnetic Cover

Remark: ** xx means there are various apertures of the surface of SMS-S80 series . The surface can be optional with different aperture as LI , LA , EL , DR , RW , FA and so on. For example , SMS-S80LI means this aperture of the surface is LI .
