Home / Products / IP65 MAGNETIC STEP LIGHT SERIES

SPECIFICATIONS

Item No: SMN-S80XX **

               SGN-S80XX

               SKN-S80XX

Wattage:3W

IP Rate:IP65

Type of Protection:Class I

Size mm:80*80*37

Funciton:ON/OFF

Color: Powder coating: White/Black/Grey , Aluminum Brushed: Gold,Silver,Black,Grey

Materials: Body: die-casting aluminum , Surface cover:SMN,SGN,SKN(Iron)

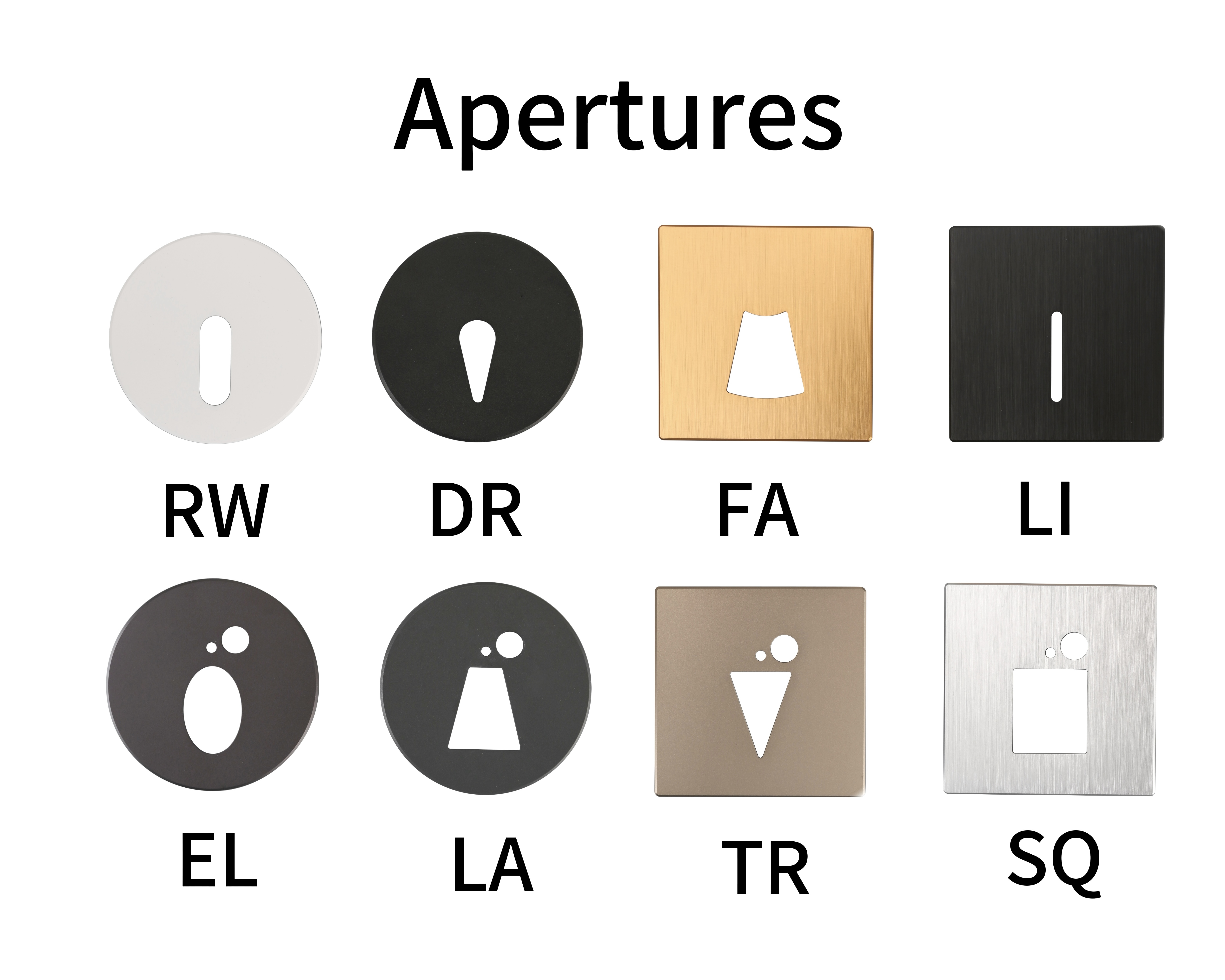

Optional aperture: LI: Line/LA: Ladder/EL: Ellipse/DR: Drop/RW: Runway/FA: Fan

Fixed with:Screw/Clips

Match wtih Cavtiy wall box:  EU: Φ68 mm box(not provided)

SMN Series- Iron Magnetic Cover

SGN Series- Aluminum Magnetic Cover

SKN Series- PMMA Magnetic Cover

Remark: ** xx means there are various apertures of the surface of SMN-S80 series . The surface can be optional with different aperture as  LI , LA , EL , DR , RW , FA and so on. For example , SMN-S80LA means this aperture of the surface is LA .
