SPECIFICATIONS
Item No: SMN-R80XX **
SGN-R80XX
Wattage:3W
IP Rate:IP65
Type of Protection:Class I
Size mm:φ80*37
Funciton:ON/OFF
5CCT Turnable: 2700K-5700K (2700-3000-3500-4000-5700k)
Color: Powder coating: White/Black/Grey , Aluminum Brushed: Gold,Silver,Black,Grey
Materials: Body: die-casting aluminum , Surface cover: SMN/ SGN( Aluminum) / SKN (PMMA)

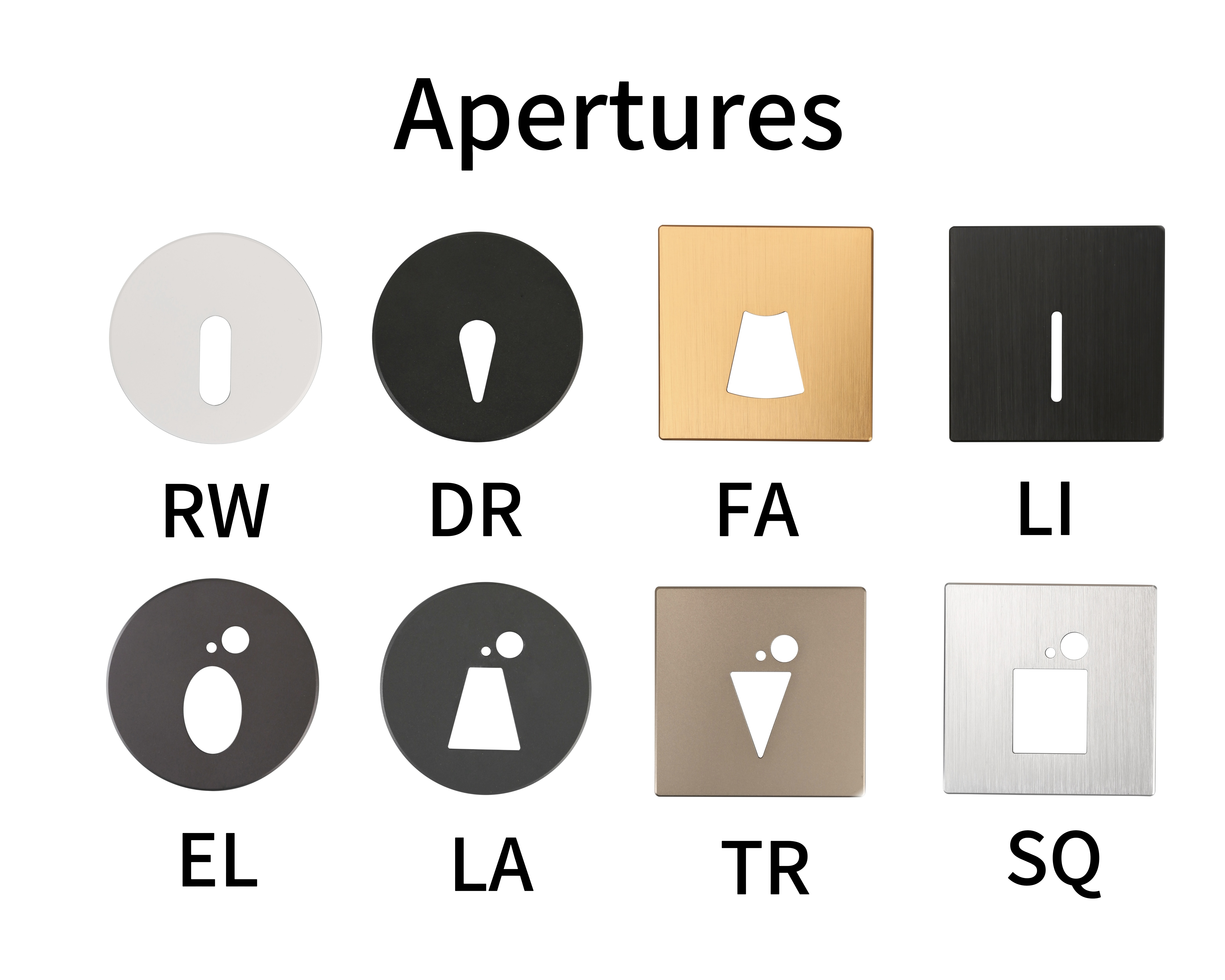

Optional aperture: LI: Line/LA: Ladder/EL: Ellipse/DR: Drop/RW: Runway/FA: Fan
Fixed with:Screw/Clips
Match wtih Cavtiy wall box: EU: Φ68 mm box(not provided)
SMN Series- Iron Magnetic Cover
SGN Series- Aluminum Magnetic Cover
Remark: ** xx means there are various apertures of the surface of SMN-R80 series . The surface can be optional with different aperture as LI , LA , EL , DR , RW , FA and so on. For example , SMN-R80LI means this aperture of the surface is LI .
