SZN-R80xx

IP20 / 1.2W / 5CCT:2700K-5700K (2700-3000-3500-4000-5700k) / ON/OFF version

SPECIFICATIONS

Item No:SZN-R80xx**

Universal Input Voltage:100-240vac

Wattage: 1.2W

IP Rate: IP20

Type of Protection: Class II

Size mm: φ80*36.8

Compatible with EU F68 wall box

Funciton:ON/OFF

5CCT Turnable:2700K-5700K (2700k-3000k-3500k-4000k-5700k)

Materials:

Cover:Die casting Aluminum

Lamp Body：PC

Fixed with:Screw M3

Color:

Powder coating: White/Grey/Black

Optional Aperture:

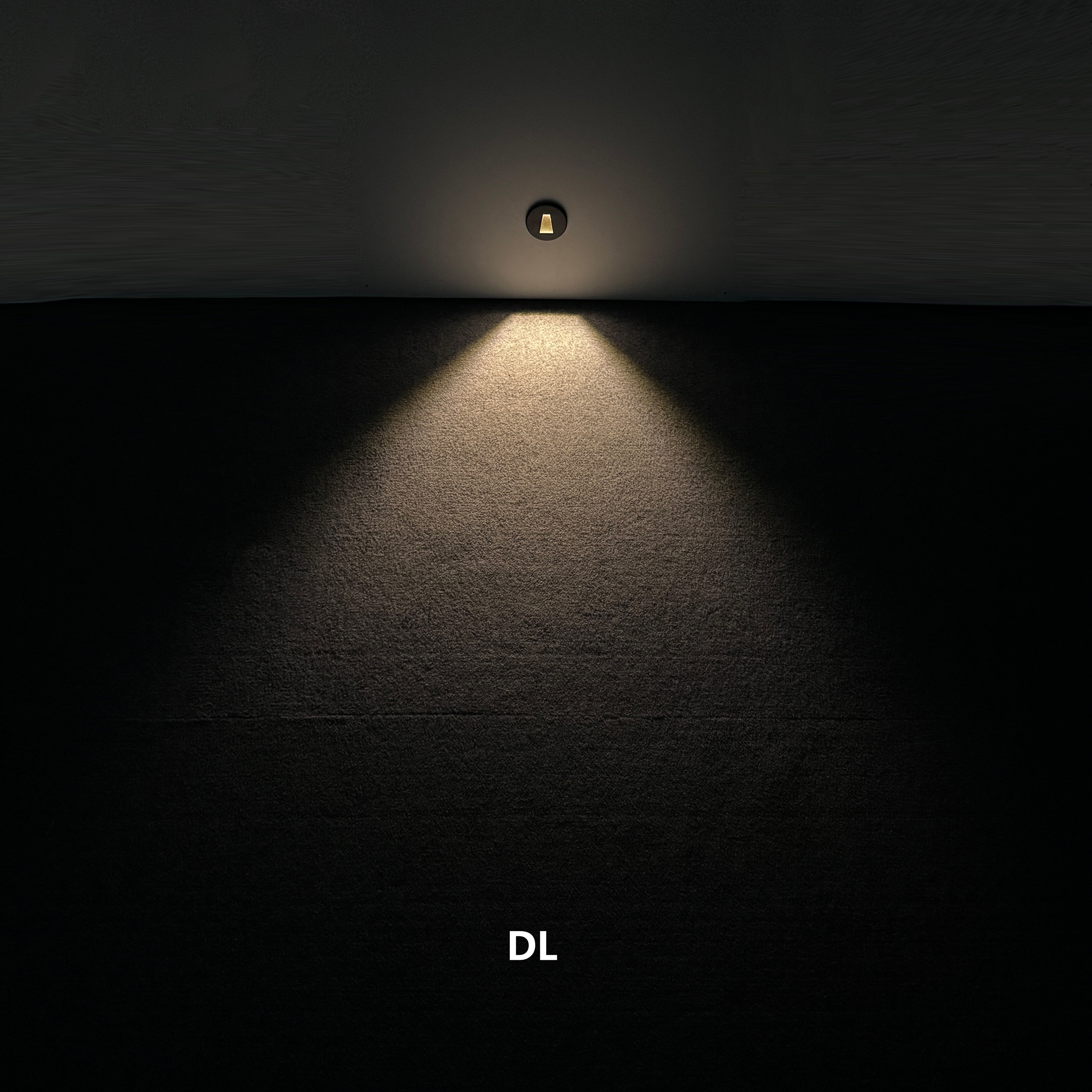

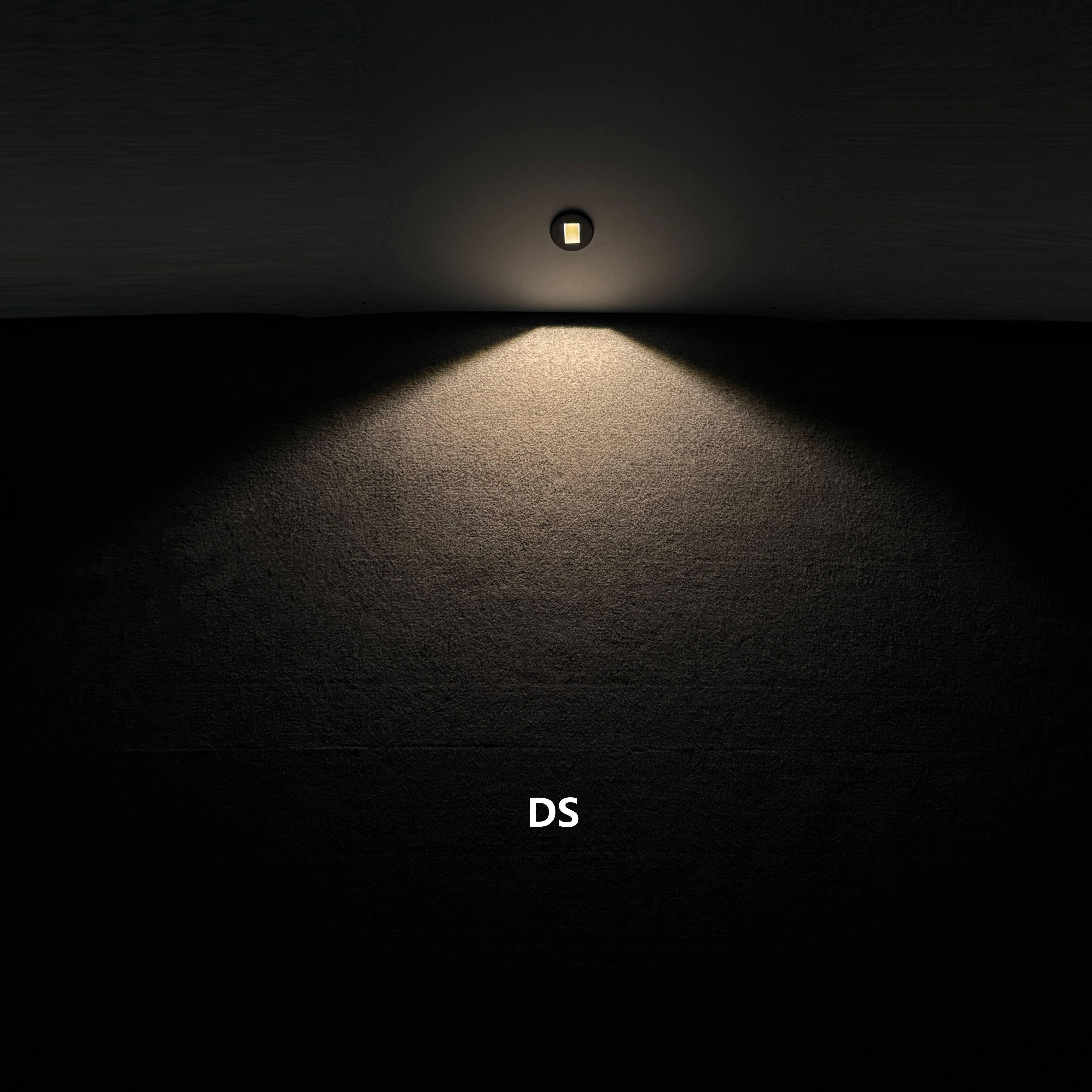

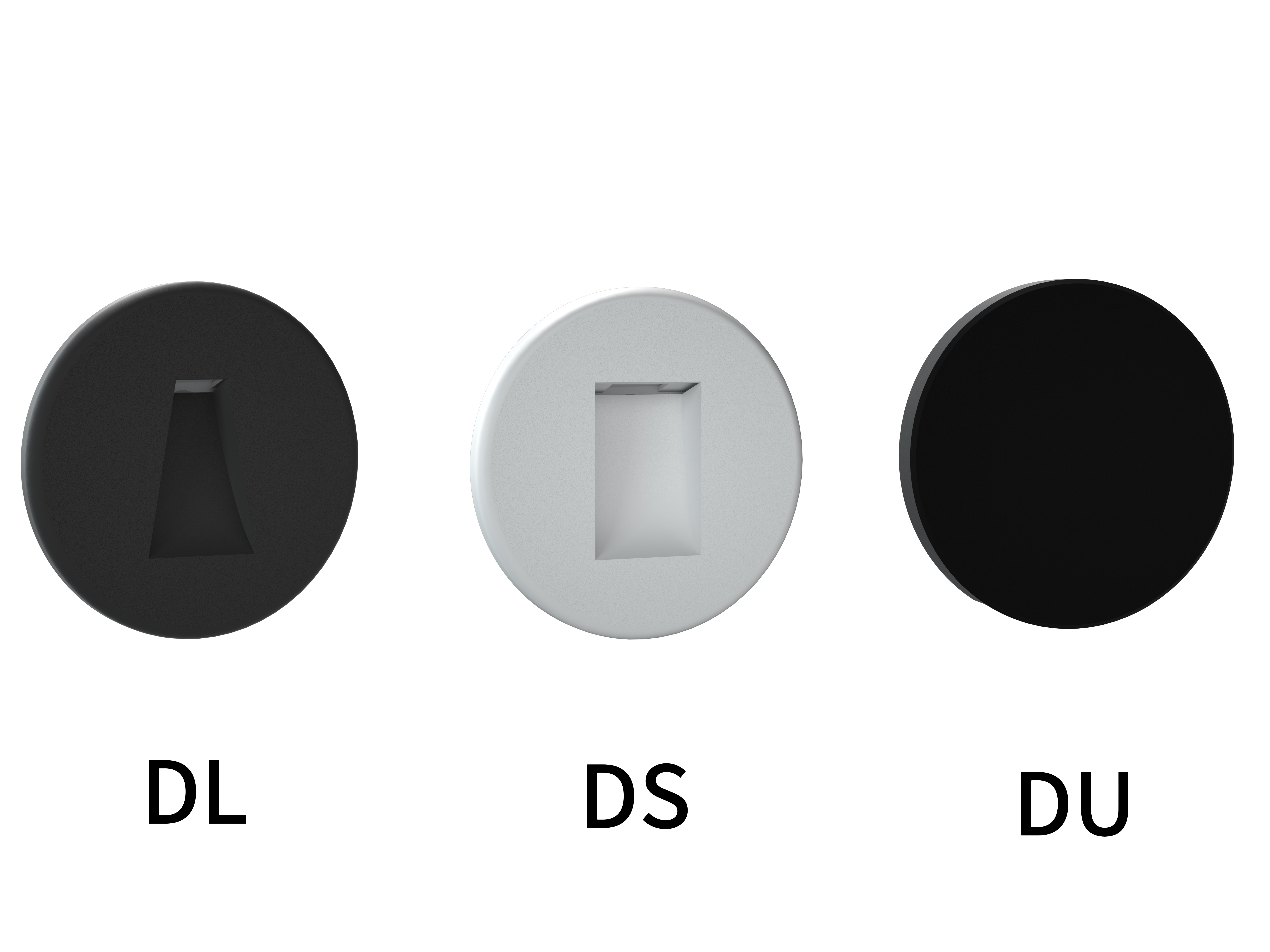

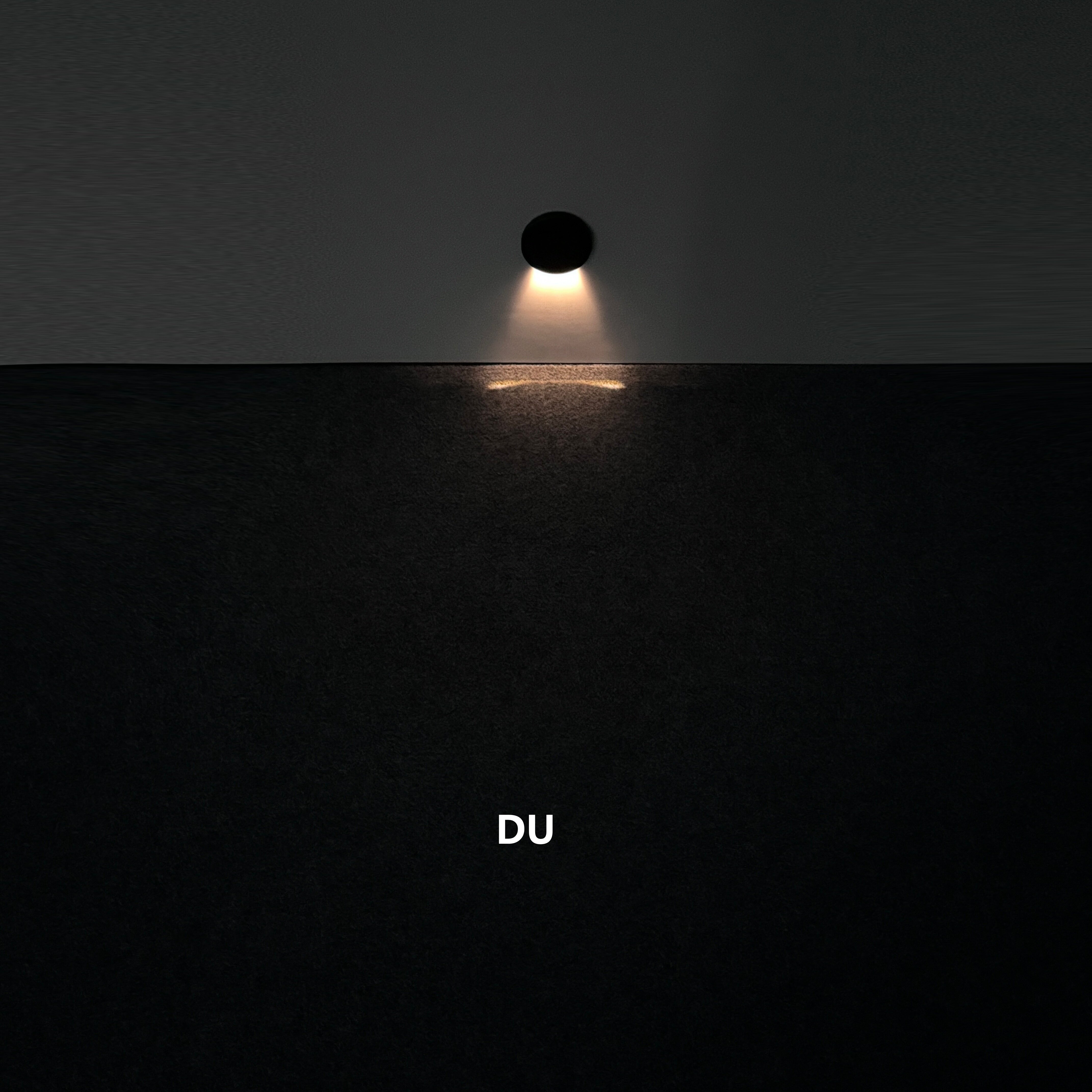

DS (Diecasting Square) / DL (Diecasting Ladder) / DU (Diecasting Under)

Remark: ** xx means there are various apertures of the surface of SZN-R80 series . The surface can be optional with different aperture as DS, DL, DU and so on. For example , STN-R80DS means this aperture of the surface is DS

Step Light : Recessed wall light, stair light, stair lamp, step lighting.
